#include <height_manager.h>

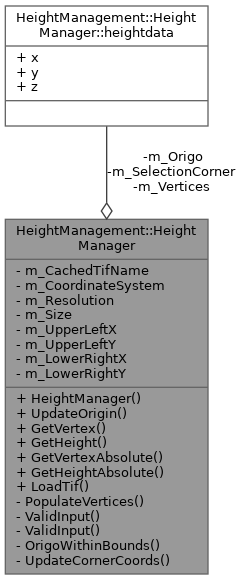

Collaboration diagram for HeightManagement::HeightManager:

Classes
struct	heightdata

Public Member Functions
	HeightManager ()
	Constructor of HeightManager class.

void	UpdateOrigin (Core::UTMCoordinate UTMCoord, int size)
	Function to update the origin point.

bool	GetVertex (int inputRelativeX, int inputRelativeY, heightdata &vertex)
	Function to return the whole "height_management" for a given point.

bool	GetHeight (int inputRelativeX, int inputRelativeY, float &height)
	Function to return height, given relative coordinates (from a system where 0, 0 is in the upper left corner)

bool	GetVertexAbsolute (double inputX, double inputY, heightdata &vertex)
	Function to get the height_management of an absolute (geographic) coordinate, using the same coordinate system of the dataset.

float	GetHeightAbsolute (double inputX, double inputY)
	Function to get the height of an absolute (geographic) coordinate, using the same coordinate system of the dataset.

void	LoadTif (const char *filePath, double x, double y)
	Function to allow user to change GeoTiff file used in planning.

Private Member Functions
void	PopulateVertices ()
	Function that will open the GeoTiff file and extract all heights for the given subset of the dataset used.

bool	ValidInput (int x, int y)
	Function to test whether a point exists within the scope of the selected data subset.

bool	ValidInput (double x, double y)
	Function to test whether a point exists within the scope of the elected data subset.

bool	OrigoWithinBounds (double x, double y)
	Function that tests whether the selected origin point is within the bounds of the currently active data set, given the buffer size required to extract the subset.

void	UpdateCornerCoords ()
	Function to update the corner coordinates saved within the member instance of the chosen dataset.

Private Attributes
const char *	m_CachedTifName = "../res/Kongsberg.tif"

const char *	m_CoordinateSystem { "UTM33" }

int	m_Resolution { 1 }

int	m_Size

long	m_UpperLeftX

long	m_UpperLeftY

long	m_LowerRightX

long	m_LowerRightY

heightdata *	m_Vertices

heightdata	m_Origo { 0, 0, 0 }

heightdata	m_SelectionCorner

Detailed Description

Definition at line 11 of file height_manager.h.

Constructor & Destructor Documentation

◆ HeightManager()

HeightManagement::HeightManager::HeightManager ( )

Constructor of HeightManager class.

Returns: No object.

Definition at line 9 of file height_manager.cpp.

Member Function Documentation

◆ GetHeight()

bool HeightManagement::HeightManager::GetHeight	(	int	inputRelativeX,
		int	inputRelativeY,
		float &	height
	)

Function to return height, given relative coordinates (from a system where 0, 0 is in the upper left corner)

Parameters

inputRelativeX	The relative X value of the point.
inputRelativeY	The relative Y value of the point.

Returns: A float containing the height value of the point in metres.

Definition at line 163 of file height_manager.cpp.

References m_Size, m_Vertices, ValidInput(), and HeightManagement::HeightManager::heightdata::z.

Here is the call graph for this function:

◆ GetHeightAbsolute()

float HeightManagement::HeightManager::GetHeightAbsolute	(	double	inputX,
		double	inputY
	)

Function to get the height of an absolute (geographic) coordinate, using the same coordinate system of the dataset.

Parameters

inputX	The absolute X value of the point.
inputY	The absolute Y value of the point.

Returns: A float containing the height of the point in metres.

Definition at line 148 of file height_manager.cpp.

References m_SelectionCorner, m_Size, m_Vertices, ValidInput(), HeightManagement::HeightManager::heightdata::x, HeightManagement::HeightManager::heightdata::y, and HeightManagement::HeightManager::heightdata::z.

Referenced by UpdateOrigin().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetVertex()

bool HeightManagement::HeightManager::GetVertex	(	int	inputRelativeX,
		int	inputRelativeY,
		HeightManager::heightdata &	vertex
	)

Function to return the whole "height_management" for a given point.

Parameters

inputRelativeX	The X coordinate in the relative system (where 0,0 is the top left corner of the system).
inputRelativeY	The Y coordinate in the relative system.

Returns: A height_management, containing the geographic (absolute) x, y and z coordinates.

Definition at line 116 of file height_manager.cpp.

References m_Size, m_Vertices, ValidInput(), and HeightManagement::HeightManager::heightdata::z.

Here is the call graph for this function:

◆ GetVertexAbsolute()

bool HeightManagement::HeightManager::GetVertexAbsolute	(	double	inputX,
		double	inputY,
		HeightManager::heightdata &	vertex
	)

Function to get the height_management of an absolute (geographic) coordinate, using the same coordinate system of the dataset.

Parameters

inputX	The absolute X value of the point.
inputY	The absolute Y value of the point.

Returns: A float containing the height of the point in metres.

Definition at line 131 of file height_manager.cpp.

References m_SelectionCorner, m_Size, m_Vertices, ValidInput(), HeightManagement::HeightManager::heightdata::x, HeightManagement::HeightManager::heightdata::y, and HeightManagement::HeightManager::heightdata::z.

Here is the call graph for this function:

◆ LoadTif()

void HeightManagement::HeightManager::LoadTif	(	const char *	filePath,
		double	x,
		double	y
	)

Function to allow user to change GeoTiff file used in planning.

If this function is not run, the user can still update the origin and Hivemind will run using the cached GeoTiff file.

Parameters

filePath	Complete file path of the file to be used.
x	X coordinate used for GeoTiff subset origin. Height data will be populated in a 500x500 pixel centered on the origin point. This is hard coded into the class.
y	Y coordinate used for GeoTiff subset origin.

Returns: No object, but will update the path for the cached tif.

Definition at line 12 of file height_manager.cpp.

References m_CachedTifName, m_Size, and UpdateOrigin().

Here is the call graph for this function:

◆ OrigoWithinBounds()

bool HeightManagement::HeightManager::OrigoWithinBounds	(	double	x,
		double	y
	)

private

Function that tests whether the selected origin point is within the bounds of the currently active data set, given the buffer size required to extract the subset.

Parameters

x	The X value of the origin point.
y	The Y value of the origin point.

Returns: A bool indicating whether or not the origin point is within bounds.

Definition at line 195 of file height_manager.cpp.

References m_LowerRightX, m_LowerRightY, m_Size, m_UpperLeftX, and m_UpperLeftY.

Referenced by UpdateOrigin().

Here is the caller graph for this function:

◆ PopulateVertices()

void HeightManagement::HeightManager::PopulateVertices ( )

private

Function that will open the GeoTiff file and extract all heights for the given subset of the dataset used.

Returns: No object, but after this has run, all heights will have been imported into the instance of the class and the various GetHeight methods can be run.

Definition at line 46 of file height_manager.cpp.

References m_CachedTifName, m_Origo, m_SelectionCorner, m_Size, m_Vertices, HeightManagement::HeightManager::heightdata::x, HeightManagement::HeightManager::heightdata::y, and HeightManagement::HeightManager::heightdata::z.

Referenced by UpdateOrigin().

Here is the caller graph for this function:

◆ UpdateCornerCoords()

void HeightManagement::HeightManager::UpdateCornerCoords ( )

private

Function to update the corner coordinates saved within the member instance of the chosen dataset.

Returns: No object, but the corner coordinates will be updated, given there were no problems opening the GeoTiff file.

Definition at line 206 of file height_manager.cpp.

References m_CachedTifName, m_LowerRightX, m_LowerRightY, m_UpperLeftX, and m_UpperLeftY.

Referenced by UpdateOrigin().

Here is the caller graph for this function:

◆ UpdateOrigin()

void HeightManagement::HeightManager::UpdateOrigin	(	Core::UTMCoordinate	UTMCoord,
		int	size
	)

Function to update the origin point.

Running this will also trigger the population of height data for the chosen subset of the GeoTiff file.

Parameters

x	X coordinate used for GeoTiff subset origin.
y	Y coordinate used for GeoTiff subset origin.

Returns: No object, but will update the origin for this instance of HeightManager and will populate the instance with height data.

Definition at line 21 of file height_manager.cpp.

References Core::UTMCoordinate::Easting, GetHeightAbsolute(), m_CoordinateSystem, m_LowerRightX, m_LowerRightY, m_Origo, m_Size, m_UpperLeftX, m_UpperLeftY, m_Vertices, Core::UTMCoordinate::Northing, OrigoWithinBounds(), PopulateVertices(), UpdateCornerCoords(), and HeightManagement::HeightManager::heightdata::z.

Referenced by LoadTif().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ValidInput() [1/2]

bool HeightManagement::HeightManager::ValidInput	(	double	x,
		double	y
	)

private

Function to test whether a point exists within the scope of the elected data subset.

Overloaded version of ValidInput() that takes doubles.

Parameters

x	The X value of the coordinate to be tested.
y	The Y value of the coordinate to be tested.

Returns: A bool indicating whether or not the input exists in the subset and is valid.

Definition at line 185 of file height_manager.cpp.

References m_SelectionCorner, m_Size, HeightManagement::HeightManager::heightdata::x, and HeightManagement::HeightManager::heightdata::y.

◆ ValidInput() [2/2]

bool HeightManagement::HeightManager::ValidInput	(	int	x,
		int	y
	)

private

Function to test whether a point exists within the scope of the selected data subset.

Parameters

x	the X value of the coordinate to be tested.
y	the Y value of the coordinate to be tested.

Returns: A bool indicating whether or not the input exists in the subset and is valid.

Definition at line 178 of file height_manager.cpp.

References m_Size.

Referenced by GetHeight(), GetHeightAbsolute(), GetVertex(), and GetVertexAbsolute().

Here is the caller graph for this function:

Member Data Documentation

◆ m_CachedTifName

const char* HeightManagement::HeightManager::m_CachedTifName = "../res/Kongsberg.tif"

private

Definition at line 130 of file height_manager.h.

Referenced by LoadTif(), PopulateVertices(), and UpdateCornerCoords().

◆ m_CoordinateSystem

const char* HeightManagement::HeightManager::m_CoordinateSystem { "UTM33" }

private

Definition at line 131 of file height_manager.h.

Referenced by UpdateOrigin().

◆ m_LowerRightX

long HeightManagement::HeightManager::m_LowerRightX

private

Definition at line 136 of file height_manager.h.

Referenced by OrigoWithinBounds(), UpdateCornerCoords(), and UpdateOrigin().

◆ m_LowerRightY

long HeightManagement::HeightManager::m_LowerRightY

private

Definition at line 137 of file height_manager.h.

Referenced by OrigoWithinBounds(), UpdateCornerCoords(), and UpdateOrigin().

◆ m_Origo

heightdata HeightManagement::HeightManager::m_Origo { 0, 0, 0 }

private

Definition at line 139 of file height_manager.h.

Referenced by PopulateVertices(), and UpdateOrigin().

◆ m_Resolution

int HeightManagement::HeightManager::m_Resolution { 1 }

private

Definition at line 132 of file height_manager.h.

◆ m_SelectionCorner

heightdata HeightManagement::HeightManager::m_SelectionCorner

private

Definition at line 140 of file height_manager.h.

Referenced by GetHeightAbsolute(), GetVertexAbsolute(), PopulateVertices(), and ValidInput().

◆ m_Size

int HeightManagement::HeightManager::m_Size

private

Definition at line 133 of file height_manager.h.

Referenced by GetHeight(), GetHeightAbsolute(), GetVertex(), GetVertexAbsolute(), LoadTif(), OrigoWithinBounds(), PopulateVertices(), UpdateOrigin(), and ValidInput().

◆ m_UpperLeftX

long HeightManagement::HeightManager::m_UpperLeftX

private

Definition at line 134 of file height_manager.h.

Referenced by OrigoWithinBounds(), UpdateCornerCoords(), and UpdateOrigin().

◆ m_UpperLeftY

long HeightManagement::HeightManager::m_UpperLeftY

private

Definition at line 135 of file height_manager.h.

Referenced by OrigoWithinBounds(), UpdateCornerCoords(), and UpdateOrigin().

◆ m_Vertices

heightdata* HeightManagement::HeightManager::m_Vertices

private

Definition at line 138 of file height_manager.h.

Referenced by GetHeight(), GetHeightAbsolute(), GetVertex(), GetVertexAbsolute(), PopulateVertices(), and UpdateOrigin().

The documentation for this class was generated from the following files:

include/height_management/height_manager.h
src/height_management/height_manager.cpp
