The Scenario class represents a scenario with keyframes and routes. More...

#include <scenario.h>

Inheritance diagram for CompileScenario::Scenario:

Collaboration diagram for CompileScenario::Scenario:

Public Types
using	RouteMap = std::map< int, std::vector< std::vector< Core::CartesianCoordinate > > >

Public Member Functions
	Scenario (std::string name, Core::GeographicalCoordinate origin, int size)
	Constructs a new Scenario object with the given name, origin, and size.

RouteMap &	Compile ()
	Compiles the scenario into a map of routes.

void	save (std::string filename)
	Saves the scenario to a file with the given filename.

void	load (std::string filename)
	Loads a scenario from a file with the given filename.

std::pair< RouteMap::iterator, RouteMap::iterator >	GetRoutes ()

std::pair< std::vector< Core::Agent >::iterator, std::vector< Core::Agent >::iterator >	GetAgents ()

void	AddAgent (Core::Agent newAgent)

void	SetOrigin (Core::GeographicalCoordinate GeoCoord, int size)
	Sets the origin of the scenario to the given geographical coordinates and size.

Private Member Functions
JSONSTART	JSONSTRING (m_Name)

JSONSTART	JSONMEMBER (Core::GeographicalCoordinate, m_Origin)

JSONSTART	JSONINT (m_Size)

JSONSTART	JSONMEMBERVECTOR (Core::Agent, m_Agents)

Private Attributes
KeyframeManagement::KeyframeManager &	m_KeyframeManager

std::vector< Core::Agent >	m_Agents

RouteMap	m_Routes

std::unique_ptr< Routemaker::Routemaker >	m_Routemaker

std::string	m_Name

Core::GeographicalCoordinate	m_Origin

int	m_Size

Detailed Description

The Scenario class represents a scenario with keyframes and routes.

The Scenario class provides functionality for creating a scenario with keyframes and routes, as well as saving and loading the scenario to and from file.

Definition at line 21 of file scenario.h.

Member Typedef Documentation

◆ RouteMap

using CompileScenario::Scenario::RouteMap = std::map<int, std::vector<std::vector<Core::CartesianCoordinate> >>

Definition at line 24 of file scenario.h.

Constructor & Destructor Documentation

◆ Scenario()

CompileScenario::Scenario::Scenario	(	std::string	name,
		Core::GeographicalCoordinate	origin,
		int	size
	)

Constructs a new Scenario object with the given name, origin, and size.

Parameters

name	The name of the scenario.
origin	The geographical coordinates of the origin.
size	The size of the scenario.

Definition at line 11 of file scenario.cpp.

References CoordinateConverter::CoordConv::GeographicToUTM(), MapManagement::MapManager::GetMap(), m_Routemaker, and CoordinateConverter::CoordConv::ResetOrigin().

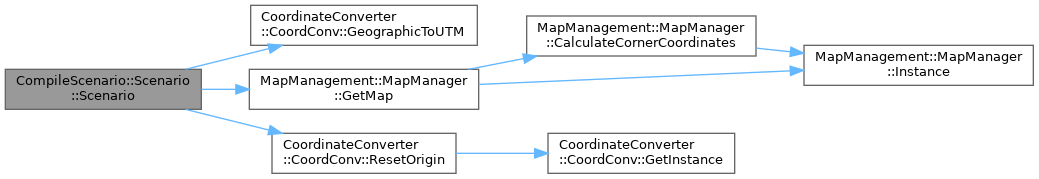

Here is the call graph for this function:

Member Function Documentation

◆ AddAgent()

void CompileScenario::Scenario::AddAgent ( Core::Agent newAgent )

Definition at line 84 of file scenario.cpp.

◆ Compile()

Scenario::RouteMap & CompileScenario::Scenario::Compile ( )

Compiles the scenario into a map of routes.

Returns: A map of routes.

Definition at line 39 of file scenario.cpp.

References KeyframeManagement::KeyframeManager::GetKeyframes(), m_KeyframeManager, m_Routes, and Core::Keyframe::TimeStamp.

Here is the call graph for this function:

◆ GetAgents()

std::pair< std::vector< Core::Agent >::iterator, std::vector< Core::Agent >::iterator > CompileScenario::Scenario::GetAgents ( )

inline

Definition at line 57 of file scenario.h.

References m_Agents.

◆ GetRoutes()

std::pair< RouteMap::iterator, RouteMap::iterator > CompileScenario::Scenario::GetRoutes ( )

inline

Definition at line 49 of file scenario.h.

References m_Routes.

◆ JSONINT()

JSONSTART CompileScenario::Scenario::JSONINT ( m_Size )

private

◆ JSONMEMBER()

JSONSTART CompileScenario::Scenario::JSONMEMBER	(	Core::GeographicalCoordinate	,
		m_Origin
	)

private

◆ JSONMEMBERVECTOR()

JSONSTART CompileScenario::Scenario::JSONMEMBERVECTOR	(	Core::Agent	,
		m_Agents
	)

private

◆ JSONSTRING()

JSONSTART CompileScenario::Scenario::JSONSTRING ( m_Name )

private

◆ load()

void CompileScenario::Scenario::load ( std::string filename )

Loads a scenario from a file with the given filename.

Parameters

filename The name of the file to load from.

Definition at line 96 of file scenario.cpp.

References Json::deserialize().

Here is the call graph for this function:

◆ save()

void CompileScenario::Scenario::save ( std::string filename )

Saves the scenario to a file with the given filename.

Parameters

filename The name of the file to save to.

Definition at line 90 of file scenario.cpp.

References Json::serialize().

Here is the call graph for this function:

◆ SetOrigin()

void CompileScenario::Scenario::SetOrigin	(	Core::GeographicalCoordinate	GeoCoord,
		int	size
	)

Sets the origin of the scenario to the given geographical coordinates and size.

Parameters

GeoCoord	The geographical coordinates of the origin.
size	The size of the scenario.

Definition at line 27 of file scenario.cpp.

References CoordinateConverter::CoordConv::GeographicToUTM(), MapManagement::MapManager::GetMap(), m_Origin, m_Routemaker, m_Size, and CoordinateConverter::CoordConv::ResetOrigin().

Here is the call graph for this function:

Member Data Documentation

◆ m_Agents

std::vector<Core::Agent> CompileScenario::Scenario::m_Agents

private

Definition at line 74 of file scenario.h.

Referenced by GetAgents().

◆ m_KeyframeManager

KeyframeManagement::KeyframeManager& CompileScenario::Scenario::m_KeyframeManager

private

Definition at line 73 of file scenario.h.

Referenced by Compile().

◆ m_Name

std::string CompileScenario::Scenario::m_Name

private

Definition at line 77 of file scenario.h.

◆ m_Origin

Core::GeographicalCoordinate CompileScenario::Scenario::m_Origin

private

Definition at line 78 of file scenario.h.

Referenced by SetOrigin().

◆ m_Routemaker

std::unique_ptr<Routemaker::Routemaker> CompileScenario::Scenario::m_Routemaker

private

Definition at line 76 of file scenario.h.

Referenced by Scenario(), and SetOrigin().

◆ m_Routes

RouteMap CompileScenario::Scenario::m_Routes

private

Definition at line 75 of file scenario.h.

Referenced by Compile(), and GetRoutes().

◆ m_Size

int CompileScenario::Scenario::m_Size

private

Definition at line 79 of file scenario.h.

Referenced by SetOrigin().

The documentation for this class was generated from the following files:

include/compile_scenario/scenario.h
src/compile_scenario/scenario.cpp
